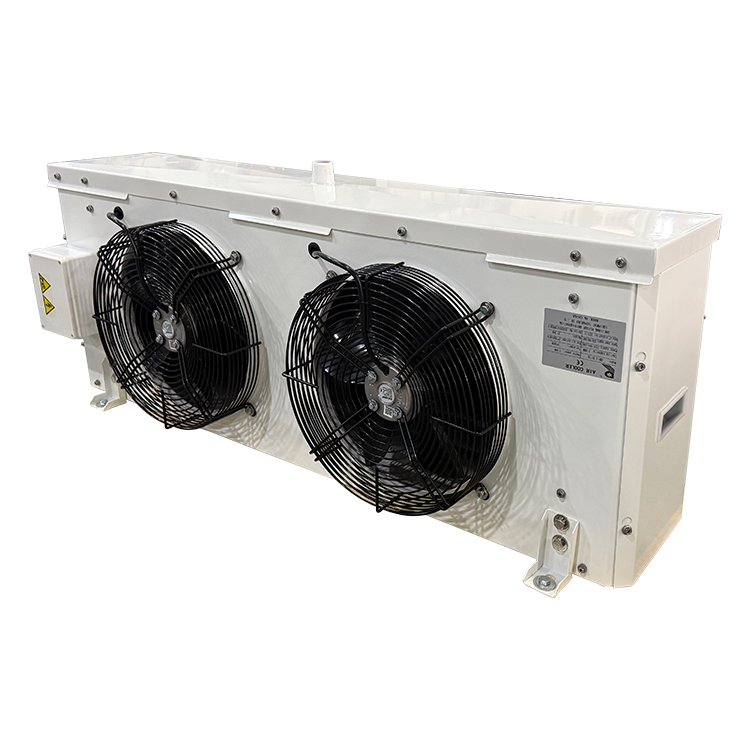

D Series Evaporators

High Efficiency: Uniform frosting design with low-noise axial fans.

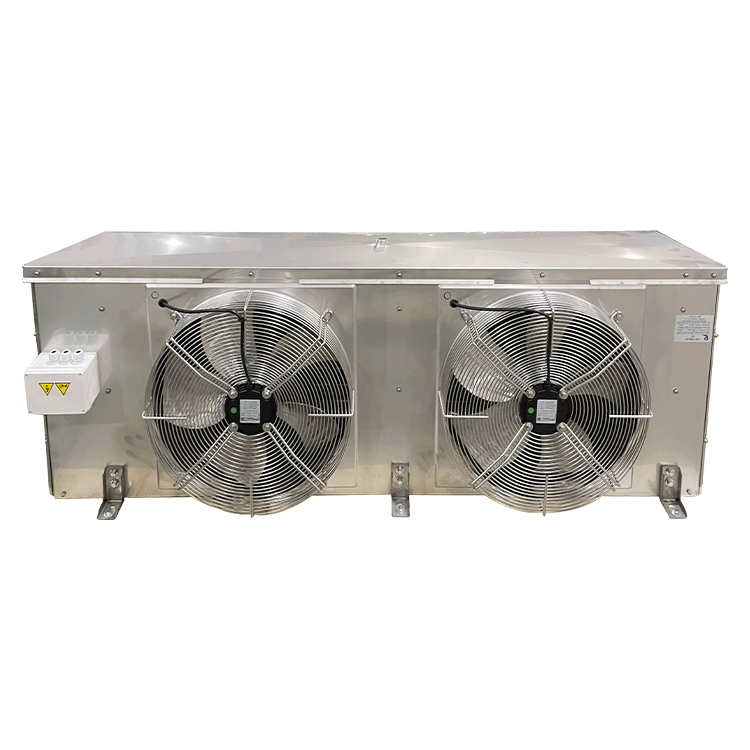

Durable Casing: Powder-coated steel (Standard) or SS304 (Optional).

Rapid Defrost: Stainless steel heaters ensure quick defrosting cycles.

Reliability: Pressure tested at 2.875MPa for high gas tightness.

Inquiry

Overview
Inquiry
Related Products

Model	Ref. capacity(kw)	Cooling Area(m²)	Spacing of Fins(mm)	Fan						Defrost heater
Model	Ref. capacity(kw)	Cooling Area(m²)	Spacing of Fins(mm)	Qty	Diameter (mm)	Volume (m³/h)	Pressure (pa)	Fan motor *(nw)**	Power supply	Coil(kW)	Water tray (kW)	Power supply
DL Series
DL-2.1/10	2.1	10.0	4.5	1	300	1*1850	98	90	220/380v 50hz 1Ph/3Ph	0.5	0.50	220v 50Hz 1Ph
DL-3.1/15	3.1	15.0		2	300	2*1850	98	2*90		0.7	0.70
DL-4.2/20	4.2	20.0		2	300	2*1850	98	2*90		0.8	0.80
DL-5.2/25	5.2	25.0		2	350	2*2750	98	2*135		1.0	1.00
DL-8.2/40	8.2	40.0		2	400	2*3500	118	2*190	380v 50Hz 3Ph	2.2	1.10
DL-11.5/55	11.5	55.0		2	400	2*3500	118	2*190		2.2	1.10
DL-16.7/80	16.7	80.0		2	500	2*6500	167	2*420		2.7	1.40
DL-22.0/105	22.0	105.0		2	500	2*6500	167	2*420		4.0	1.40
DL-25.8/125	25.8	125.0		3	500	2*6500	167	3*420		7.2	1.80
Note :The tech .data is based on R22,T(r)=0℃, △T=10℃.
DD Series
DD-1.4/7	1.4	7	6	1	300	1*1850	98	90	220/380v 50hz 1Ph/3Ph	0.5	0.5	220v 50Hz 1Ph
DD-2.35/12	2.35	12		2	300	2*1850	98	2*90		0.7	0.7
DD-3.0/15	3.00	15		2	300	2*1850	98	2*90		0.8	0.8
DD-4.0/22	4.00	22		2	350	2*2750	98	2*135		1.0	1.0
DD-6.0/30	6.00	30		2	400	2*3500	118	2*190	380v 50Hz 3Ph	2.2	1.1
DD-8.0/40	8.00	40		2	400	2*3500	118	2*190		2.2	1.1
DD-12.0/60	12.00	60		2	500	2*6500	167	2*420		4.0	1.4
DD-15.9/80	15.90	80		2	500	2*6500	167	2*420		5.4	1.4
DD-20.0/100	20.00	100		3	500	2*6500	167	3*420		9.0	1.8
Note :The tech .data is based on R22,T(r)=-18℃, △T=10℃.
DJ Series
DJ-1.2/7	1.20	7	9	2	300	2*1850	98	2*90	220/380v 50hz 1Ph/3Ph	0.7	0.7	220v 50Hz 1Ph
DJ-1.32/10	1.32	10		2	300	2*1850	98	2*90		0.8	0.8
DJ-2.3/15	2.30	15		2	350	2*2750	98	2*135		1.0	1.0
DJ-4.0/20	4.00	20		2	400	2*3500	98	2*190		2.2	1.1
DJ-5.1/30	5.10	30		2	400	2*3500	118	2*190	380v 50Hz 3Ph	2.2	1.1
DJ-7.8/40	7.80	40		2	500	2*6500	118	2*420		4.0	1.4
DJ-9.5/55	9.50	55		2	500	2*6500	167	2*420		5.4	1.4
DJ-12.8/70	12.80	70		3	500	3*6500	167	3*420		9.0	1.8
DJ-15.7/85	15.70	85		3	500	3*6500	167	3*420		11.0	2.2
Note :The tech .data is based on R22,T(r)=-25℃, △T=10℃.
