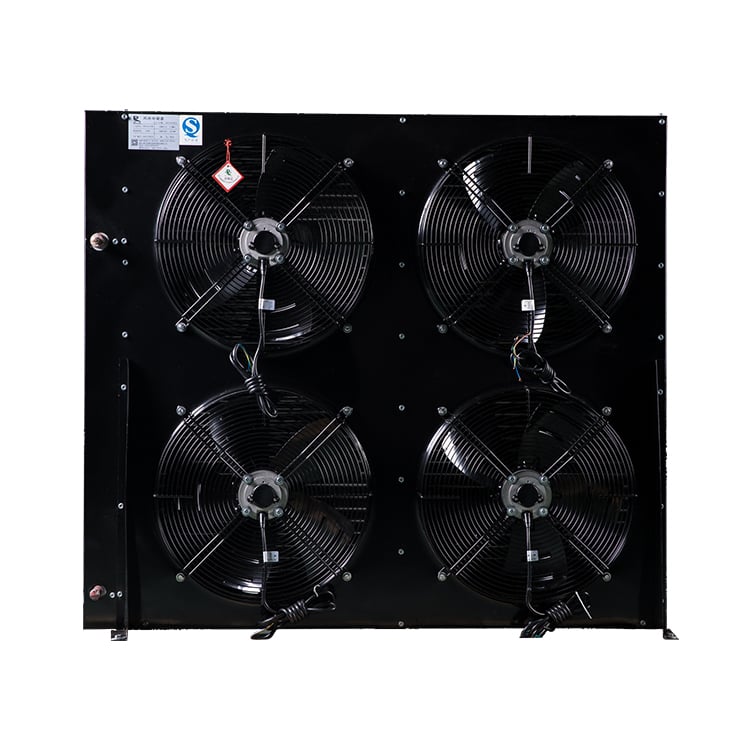

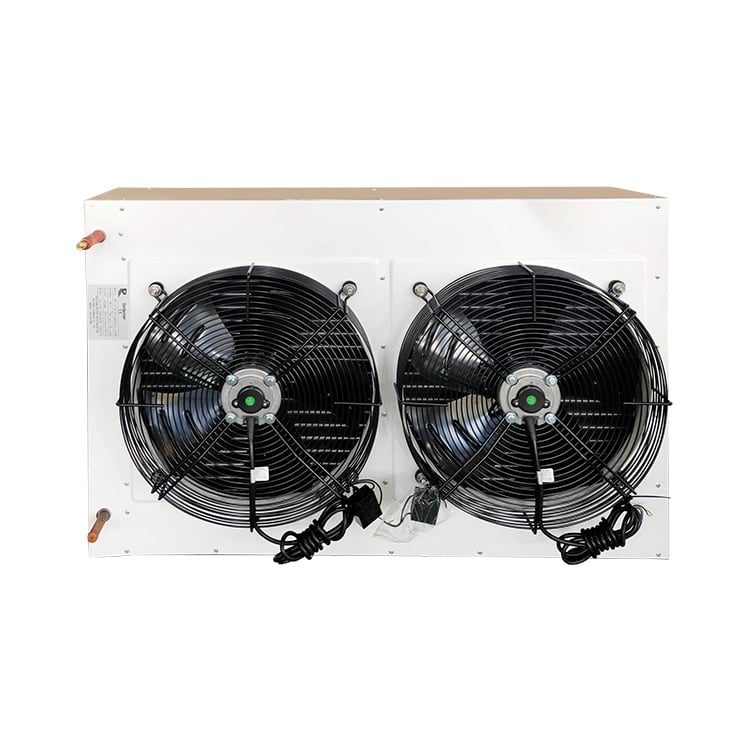

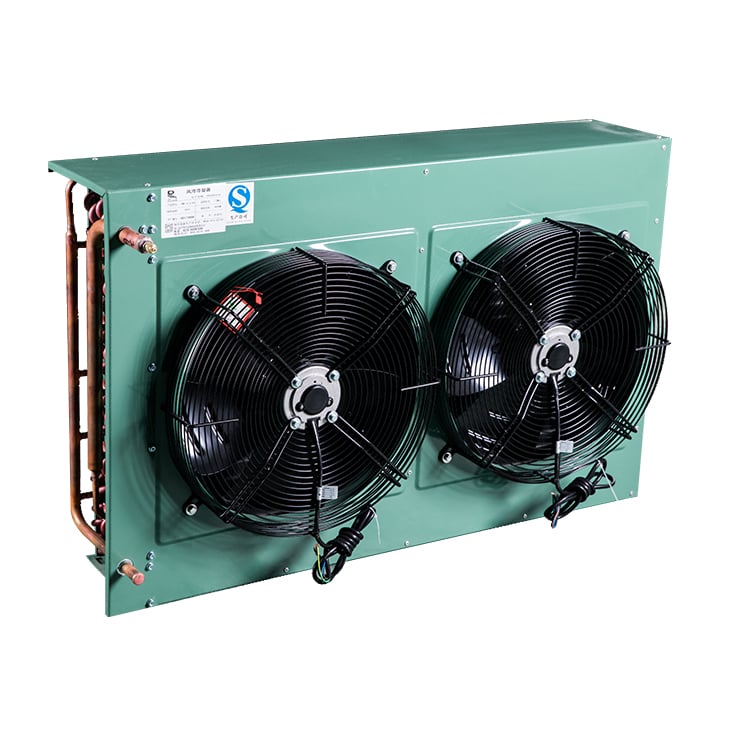

H type Condenser

Condensers are of reasonable structure, good compatibility and can be matched with various compressors;
The shell is made of quality steel with powder coating, which is corrosion-resistant and beautiful;
The condensers are tested under air pressure 2.875MPa, make sure the products'high gas tightness;
According to customer's requirement, different condenser fans are available.

Inquiry

Overview
Inquiry
Related Products

Fin spacing: 2mm
Model	Δt	YH301A	YH302A	YH351A	YH352A	YH354A	YH401B	YH402B
Capacity (kW)	15K	3.6	7.7	6.0	12.0	24.0	11.2	22.2
	12K	2.9	6.1	4.8	9.6	19.2	8.7	17.4
	10K	2.4	5.1	4.0	8.0	16.0	7.0	13.9
Air volume	m³/h	1450	2900	2050	4100	8200	2950	5900
Common Data
Fan qty	NO.	1-φ300	2-φ300	1-φ350	2-φ350	4-φ350	1-φ400	2-φ400
Fan power	kW	0.08	0.15	0.129	0.258	0.516	0.18	0.36
Fan current	A	0.24	0.48	0.40	0.80	1.60	0.47	0.94
Noise	dB	60	60	64	64	64	67	67
Tube volume	dm³	0.44	0.88	0.76	1.51	3.03	1.58	3.16
Connection	φmm	10/10	12/16	12/16	12/16	12/16	12/16	16/22
Weight	kg	9.1	16.7	13.3	24.9	47.5	19.5	36.8
Dimensions	A	450	825	560	1025	1025	595	1050
	B	340	340	440	440	840	640	640
	C	380	730	480	930	930	500	970
	D	195	195	195	195	195	235	235
	E	275	275	275	275	275	335	335
	G	130	130	130	130	130	190	190
	H	/	/	/	/	100	/	/
