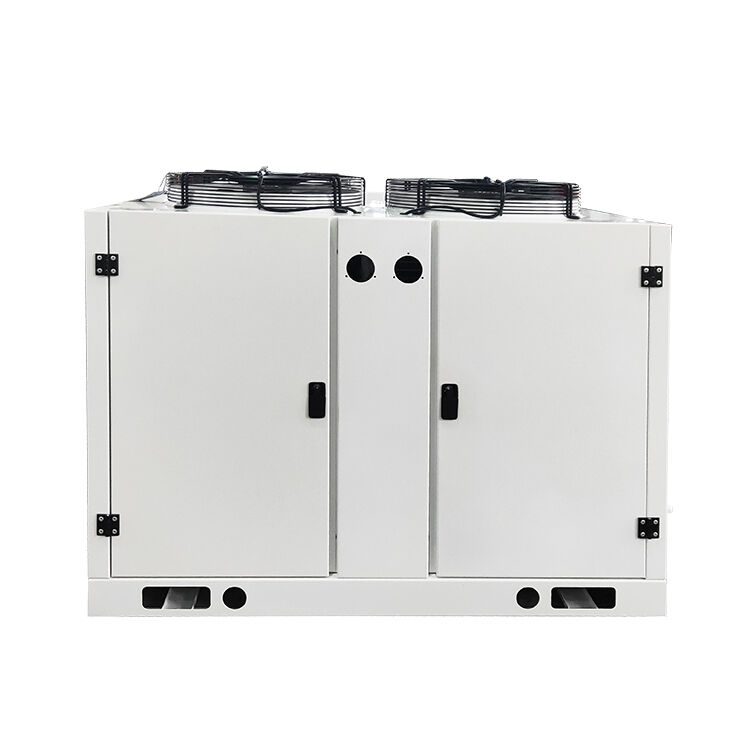

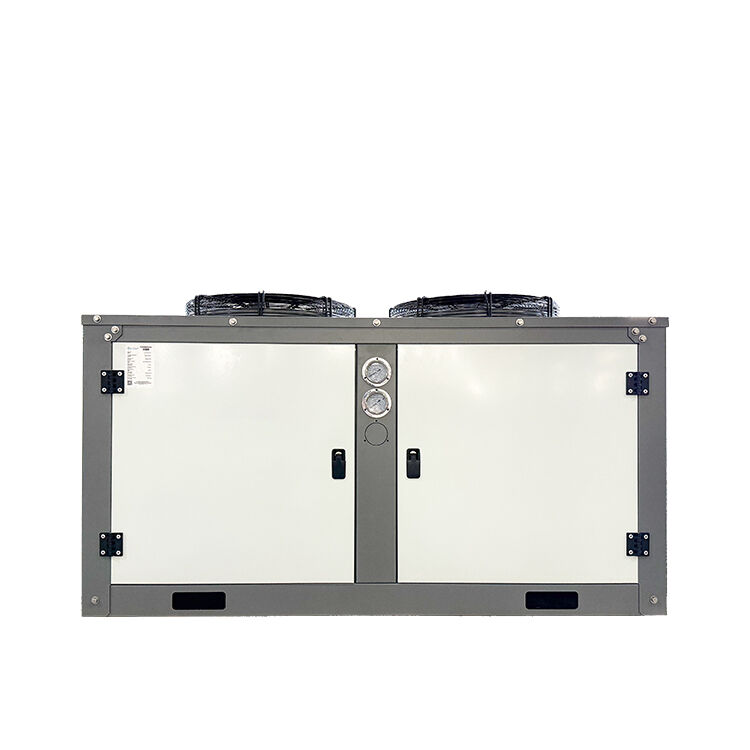

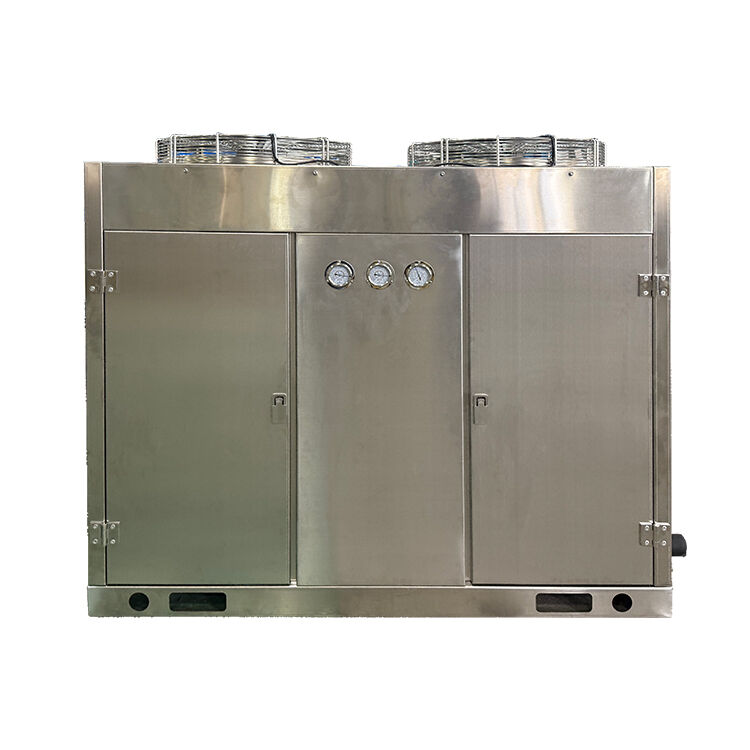

U Type Condensing Units

With thicker casing made of high qualitysteel with powder coating, the whole box withvery strong structure;
Fitted with hermetic compressors like Emerson Copeland, Danfoss, Tecumseh and Invotech;
Fitted with axial fans with good quality, running quietly.

Inquiry

Overview
Inquiry
Related Products

Power Supply:380V3PH/50HZ
Fin spacing:2mm
Model	Δt	YU451A/10.4	YU452A/18.7	YU502A/23.8	YU502B/27.3	YU502B/31.3	YU551A/15.2	YU552B/36.9	YU552B/39.5
Capacity(kw)	15K	15.1	27.3	34.7	39.7	45.6	22.2	53.8	57.5
	12K	12.0	21.7	27.5	31.5	36.2	17.6	42.7	45.6
	10K	10.4	18.7	23.8	27.3	31.3	15.2	36.9	39.5
Air volume	m³/h	4850	9700	13600	13600	13600	9400	18800	18800
Common Data
Fan qty	NO.	1-φ450	2-φ450	2-φ500	2-φ500	2-φ500	1-φ550	2-φ550	2-φ550
Fan power	Kw	0.37	0.74	1.0	1.0	1.0	0.75	1.50	1.50
Fan current	A	0.75	1.50	1.7	1.7	1.7	1.1	2.2	2.2
Noise	dB	69	69	71	71	71	72	72	72
Tube volume	dm³	2.18	3.82	4.72	6.82	7.31	3.13	8.28	9.38
Connection	φmm	19/16	22/16	22/16	25/19	25/19	22/16	25/19	28/22
Weight	Kg	62	97	108.0	117.0	121.0	81	138	146
Dimensions	A	760	1460	1460	1460	1460	860	1660	1660
	B	705	805	1005	905	1005	805	955	1055
	C	775	775	825	825	825	875	875	875
	D	400	900	900	900	900	450	1000	1000
