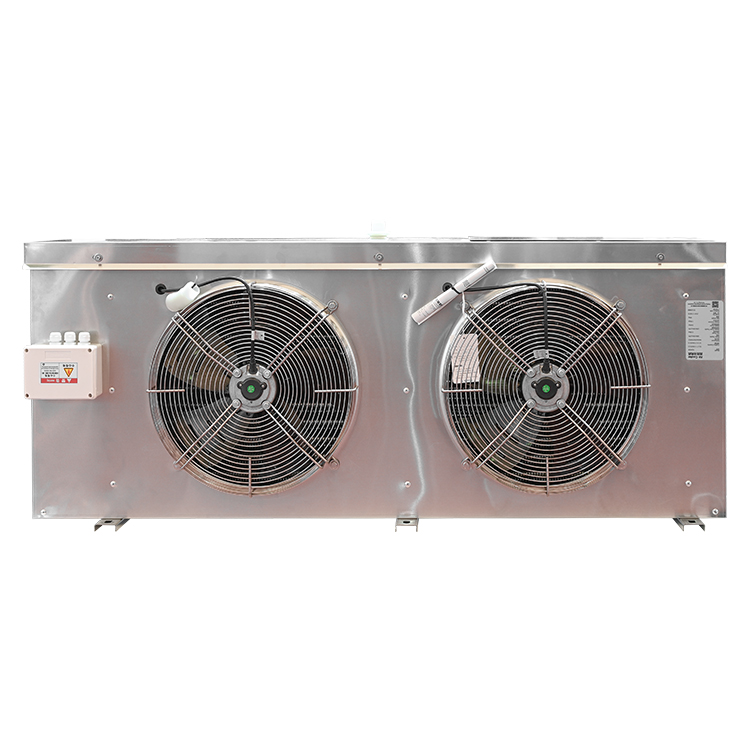

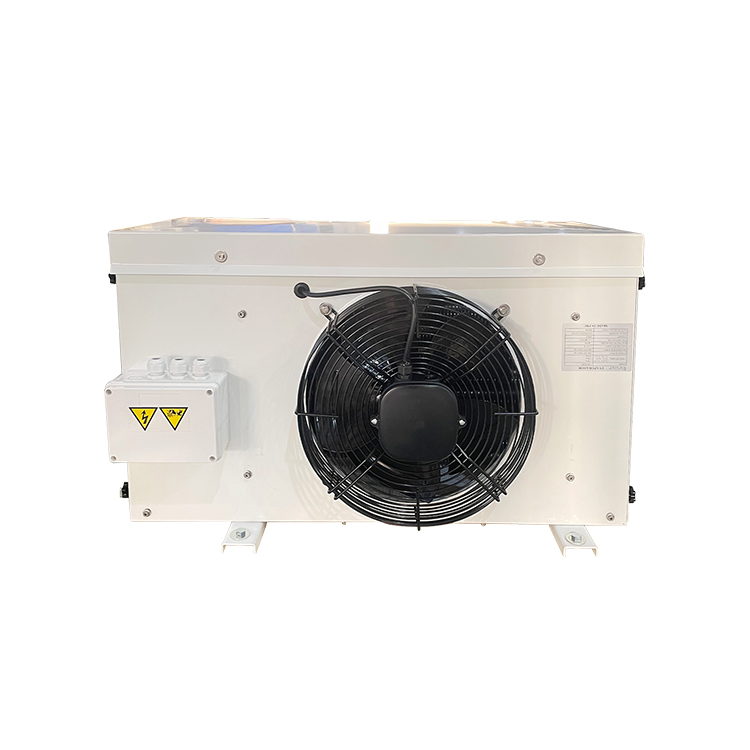

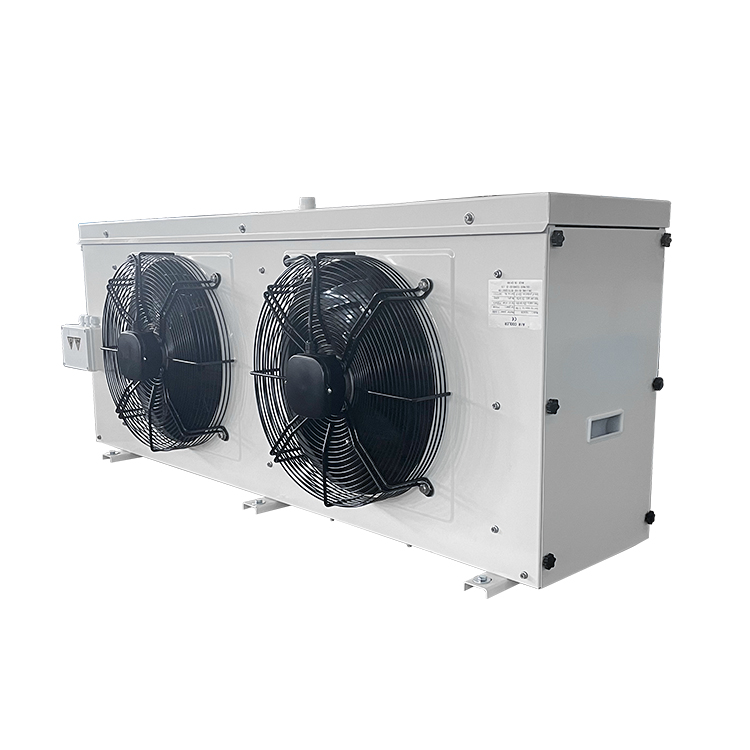

Euxiur High Efficiency Evaporator

High Efficiency: Uniform frosting design with low-noise axial fans.

Durable Casing: Powder-coated steel (Standard) or SS304 (Optional).

Rapid Defrost: Stainless steel heaters ensure quick defrosting cycles.

Reliability: Pressure tested at 2.875MPa for high gas tightness.

Copper Tube:3/8" Power Supply:380V3PH/50HZ Refrigerant:R404A
Fin spacing: 4mm
Model		Y4E301B/2.6	Y4E302A/3.7	Y4E302B/4.7	Y4E302C/5.2	Y4E303B/6.6	Y4E303C/7.7	Y4E304C/9.6
Capacity(kw)	Ta 10℃, Te 0℃	3.8	5.3	6.8	7.6	9.6	11.2	14.0
Capacity(kw)	Ta 0℃, Te -8℃	2.6	3.7	4.7	5.2	6.6	7.7	9.6
Air volume	m³/h	1330	2660	2230	2300	3610	3400	4320
Fin spacing: 6mm
Model		Y6E301B/1.5	Y6E302A/2.1	Y6E302B/2.8	Y6E302C/3.1	Y6E303B/3.9	Y6E303C/4.7	Y6E304C/5.9
Capacity (kW)	Ta 0℃, Te -8℃	2.1	3.2	3.8	4.4	5.6	6.5	8.5
Capacity (kW)	Ta -18℃, Te -25℃	1.5	2.1	2.8	3.1	3.9	4.7	5.9
Air volume	m³/h	1400	2800	2590	2440	3825	3600	4580
Fin spacing: 8mm
Model		Y6E301B/1.5	Y6E302A/2.1	Y6E302B/2.8	Y6E302C/3.1	Y6E303B/3.9	Y6E303C/4.7	Y6E304C/5.9
Capacity (kW)	Ta -18℃, Te -25℃	1.4	1.9	2.5	2.9	3.6	4.3	5.4
Capacity (kW)	Ta -25℃, Te -31℃	1.1	1.5	2.0	2.3	2.9	3.4	4.3
Air volume	m³/h	1430	2800	2590	2440	3820	3600	4500
Common Data
Fan qty	NO.	1-φ300	2-φ300	2-φ300	2-φ300	3-φ300	3-φ300	4-φ300
Fan power	KW	0.075	0.15	0.15	0.15	0.225	0.225	0.3
Fan current	A	024	0.48	0.48	0.48	0.72	0.72	0.96
Air throw	m	6	6	6	6	6	6	6
Noise	dB	58	59	60	58	59	60	59
Defrost power	Kw	1.8	2.6	3.4	3.4	4.9	4.9	5.9
Tube volume	dm³	1.4	1.8	2.3	2.9	3.3	4.1	5
Connection	φmm	12/22	12/22	12/22	12/22	12/28	16/28	16/28
Weight	kg	25	37	40	42	53	56	67
