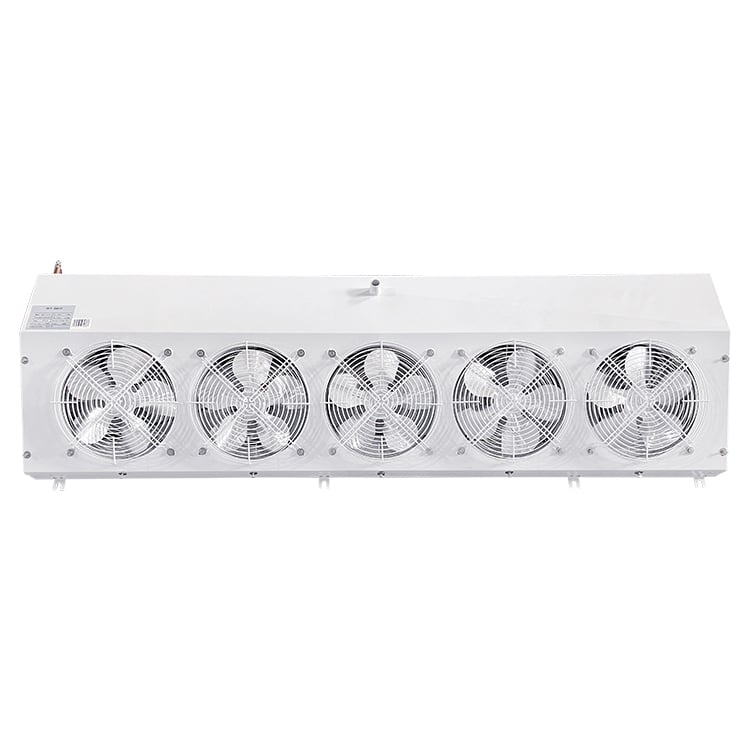

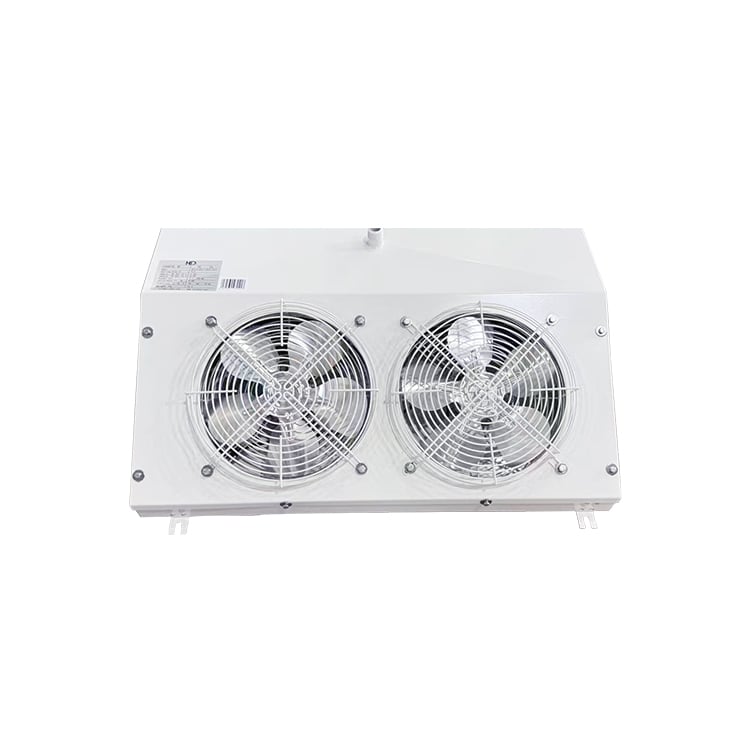

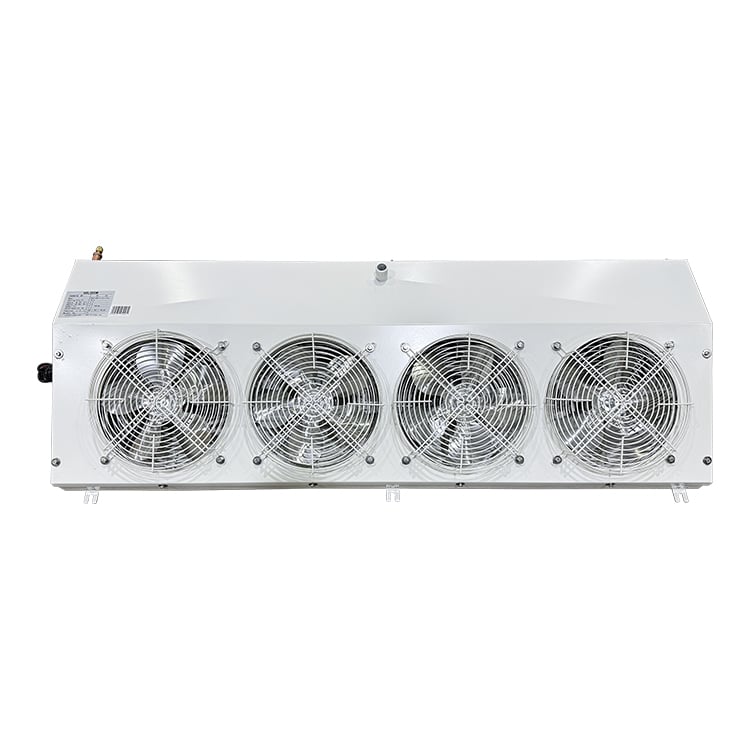

Angled Evaporator
Ultra-Compact Design: Perfect for tight spaces with limited headroom.
Low Noise Performance: Powered by smooth-running shaded pole motors.
Soft Airflow Technology: Preserves product humidity and freshness.
- Overview
- Inquiry
- Related Products
| Model |
Ref.capacity (kw) |
Cooling area(m²) |
Spacing of fins(mm) |
Fan |
Defrost heater(kw) |
Overall dimension(mm) |
||||||
| Qty |
Diameter (mm) |
Volume (m³/h) |
Fan motor(n*w) |
Power supply |
L | W | H | |||||
| DE-0.45/2.5 | 0.45 | 2.5 | 4 | 1 | 200 | 400 | 40 |
220v 50hz 1ph |
0.35 | 430 | 500 | 180 |
| DE-0.9/5 | 0.9 | 5 | 2 | 200 | 800 | 2*40 | 0.6 | 730 | 500 | 180 | ||
| DE-1.35/7.5 | 1.35 | 7.5 | 3 | 200 | 1200 | 3*40 | 0.9 | 1030 | 500 | 180 | ||
| DE-1.8/10 | 1.8 | 10 | 4 | 200 | 1600 | 4*40 | 1.2 | 1330 | 500 | 180 | ||
| DE-2.2/12.5 | 2.2 | 12.5 | 5 | 200 | 2000 | 5*40 | 1.5 | 1630 | 500 | 180 | ||
| DE-0.45/2.5 | 0.45 | 2.5 | 6 | 1 | 200 | 400 | 40 | 0.35 | 430 | 500 | 230 | |
| DE-0.9/5 | 0.9 | 5 | 2 | 200 | 800 | 2*40 | 0.6 | 730 | 500 | 230 | ||
| DE-1.35/7.5 | 1.35 | 7.5 | 3 | 200 | 1200 | 3*40 | 0.9 | 1030 | 500 | 230 | ||
| DE-1.8/10 | 1.8 | 10 | 4 | 200 | 1600 | 4*40 | 1.2 | 1330 | 500 | 230 | ||
| DE-2.2/12.5 | 2.2 | 12.5 | 5 | 200 | 2000 | 5*40 | 1.5 | 1630 | 500 | 230 | ||
📥Please download the complete product catalog here.Download
(Select the "Evaporator" catalog).
