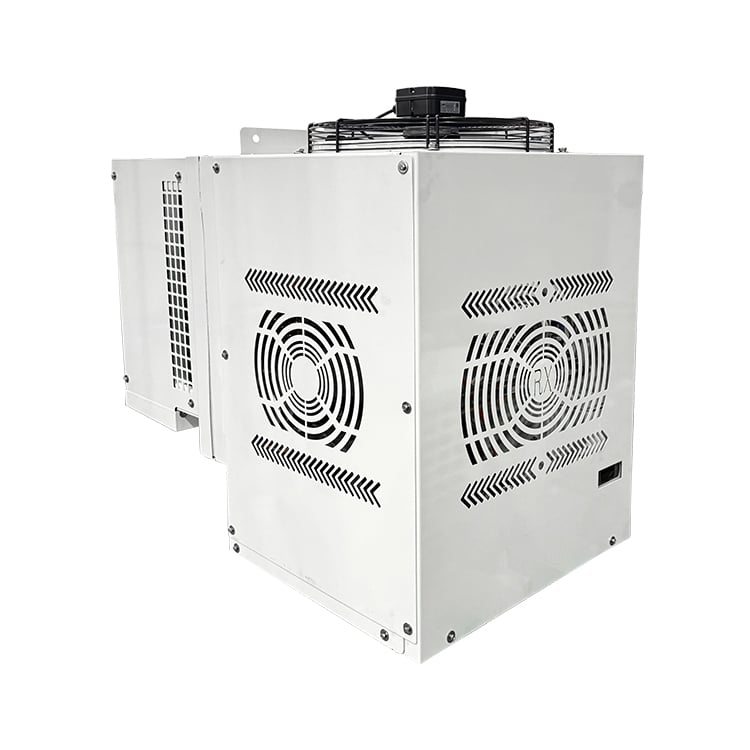

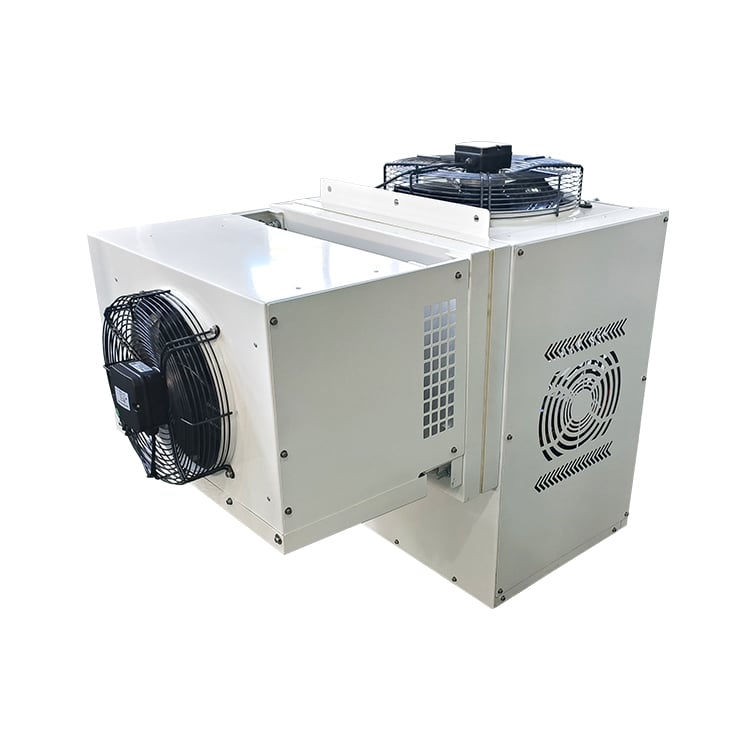

Monoblock Condensing Units

With thicker casing made of high qualitysteel with powder coating, the whole box withvery strong structure;
Fitted with hermetic compressors like Emerson Copeland, Danfoss, Tecumseh and Invotech;
Fitted with axial fans with good quality, running quietly.

Inquiry

Overview
Inquiry
Related Products

‌ 1. ‌Medium high temperature type (0 to 10 ℃)
Model	Capacity(W)	Volume(m³)	Compressor	Power supply	Rated(A)	Net(kg)	(Gross)kg
WM10DH-R-S1	1720	14-18	1.0	1P-220V/50Hz	7.9	90	102
WM15DH-R-S1	2420	23-29	1.5	1P-220V/50Hz	7.1	118	134
‌ 2. ‌low temperature type (-10 to -20 ℃)
Model	Capacity(W)	Volume(m³)	Compressor	Power supply	Rated(A)	Net(kg)	(Gross)kg
WL10DH-R-S1	850	4-6.5	1.0	1P-220V/50Hz	3.8	78	99
WL15DC-R-S3	1430	8-11	1.5	3P-380V/50Hz	3.1	109	125
‌ Note 1：Refrigeration calibration conditions: medium and high temperature type 0 °C TD 10K; low temperature type - 18 °C TD = 7K; ‌ Note 2: Maximum cold storage volume conditions (ambient temperature 35 °C) are allowed: ‌ ① The thickness of the frozen treasury board is 100mm, the stacking density of the goods in the warechouse is 250kg/m³, the storage capacity is 10%, and the storage temperature is ≤ 25°C; ②The thickness of the frozen treasury board is 120mm, the stacking density of the goods in the warechouse is 250kg/m³, the storage capacity is 10%, and the storage temperature is ≤ -15°C;
