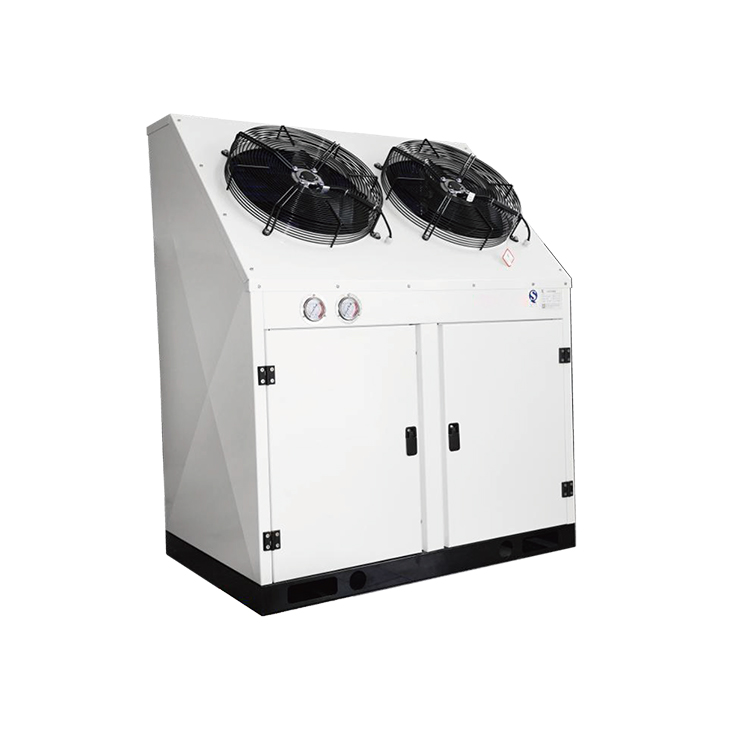

H Type Condensing Units
With thicker casing made of high qualitysteel with powder coating, the whole box withvery strong structure;
Fitted with hermetic compressors like Emerson Copeland, Danfoss, Tecumseh and Invotech;
Fitted with axial fans with good quality, running quietly.
- Overview
- Inquiry
- Related Products
| Model |
Heat exchange capacity (kW) |
Fan |
Inlet pipe/ Outlet pipe |
Overall dimension(mm) |
Installation dimension(mm) |
||||||
| Power (w) | Diameter(mm) |
Air volume (m³/h) |
Voltage (v) | Inlet tube (mm) |
Back trachea (mm) |
A*B*H | D | E | |||
| FNHX-28 | 9.2 | 1*190 | φ400 | 1*3500 | 380 | φ16 | φ19 | 800*660*930 | 600 | 600 | |
| FNHX-35 | 11.5 | 1*250 | φ450 | 1*5050 | 380 | φ16 | φ19 | 950*710*930 | 750 | 650 | |
| FNHX-45 | 14.8 | 2*190 | φ400 | 2*3500 | 380 | φ16 | φ19 | 1000*660*1020 | 750 | 600 | |
| FNHX-60 | 19.2 | 2*190 | φ400 | 2*3500 | 380 | φ16 | φ22 | 1050*750*1270 | 750 | 710 | |
| FNHX-80 | 25.6 | 2*250 | φ450 | 2*5050 | 380 | φ16 | φ22 | 1150*750*1420 | 850 | 710 | |
| FNHX-90 | 28.2 | 2*250 | φ450 | 2*5050 | 380 | φ19 | φ25 | 1250*750*1420 | 900 | 710 | |
| FNHX-100 | 32.1 | 2*420 | φ500 | 2*6500 | 380 | φ19 | φ25 | 1400*750*1420 | 950 | 710 | |
| FNHX-120 | 37.2 | 2*420 | φ500 | 2*6500 | 380 | φ19 | φ25 | 1250*750*1420 | 900 | 710 | |
Refcomp Medium and High Temperature Air-Cooled Condensing Unit Semi-hermetic Series | |||||||
| Model of units | RX-FNH-05MH | RX-FNH-08MH | RX-FNH-12MH | RX-FNH-15MH | RX-FNH-20MH | ||
| Compressor model |
SPC4-19H | SPC4-27H |
SP4HF-1200/ SP4HF-120E |
SP4HF-1500/ SP4HF-150E |
SP4HF-2000/ SP4HF-200E |
||
| Applicable Temperature (°C) | -5℃ ~ -15℃ | ||||||
| Refrigerant | R22 / R404A | ||||||
| Condenser |
Quantity of Fan(pcs) | 2 | 2 | 2 | 2 | 2 | |
| Power of Fan (w) | 2*190 | 2*250 | 2*550 | 2*800 | 2*580 | ||
|
Ref.Capacity of condensing units |
Evaporating Temperature -5℃ | Ref.Capacity(w) |
12600/12800 | 18600/18900 | 26600/26200 | 31000/30600 | 35400/34900 |
| Power(w) | 3900/4500 | 5500/6600 | 8500/10300 | 10000/12000 | 11400/13700 | ||
| Evaporating Temperature -15℃ | Ref.Capacity(w) |
8200/8300 | 12100/12200 | 16800/16900 | 19600/19700 | 22400/22500 | |
| Power(w) | 3400/3800 | 4800/5700 | 7000/8800 | 8200/10300 | 9300/11700 | ||
| Coupling | Tube coupling (mm) | 12 | 12 | 16 | 16 | 22 | |
| Suction coupling(mm) | 28 | 28 | 35 | 42 | 42 | ||
Overall dimension |
Lenght (A) mm | 1050 | 1150 | 1400 | 1550 | 1900 | |
| Width (B) mm | 750 | 750 | 750 | 750 | 750 | ||
| Height (H) mm | 1270 | 1420 | 1520 | 1520 | 1520 | ||
| Installation dimension (D*E) mm | 750*710 | 850*710 | 950*710 | 1100*710 | 1100*710 | ||
📥Please download the complete product catalog here.Download
(Select the "Condensing Unit" catalog).
