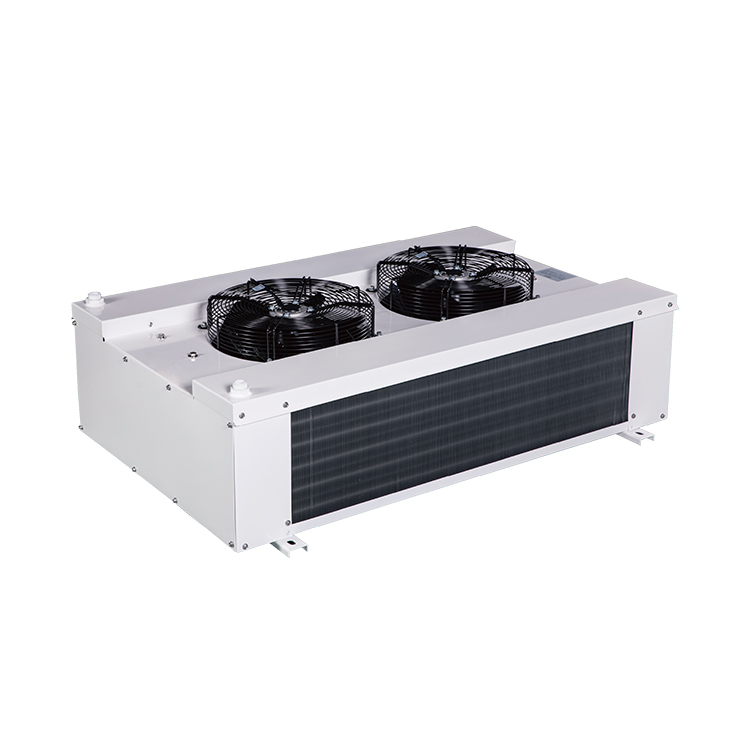

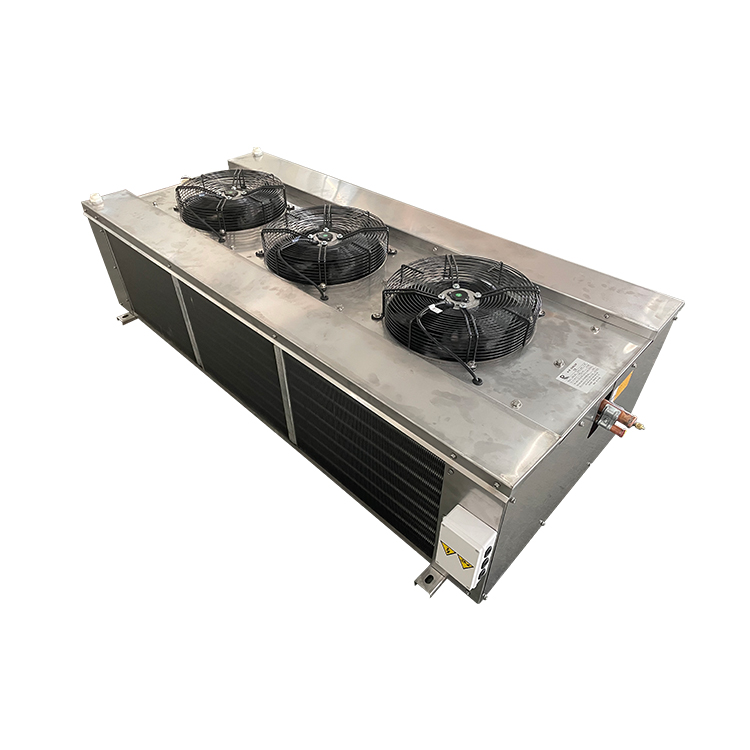

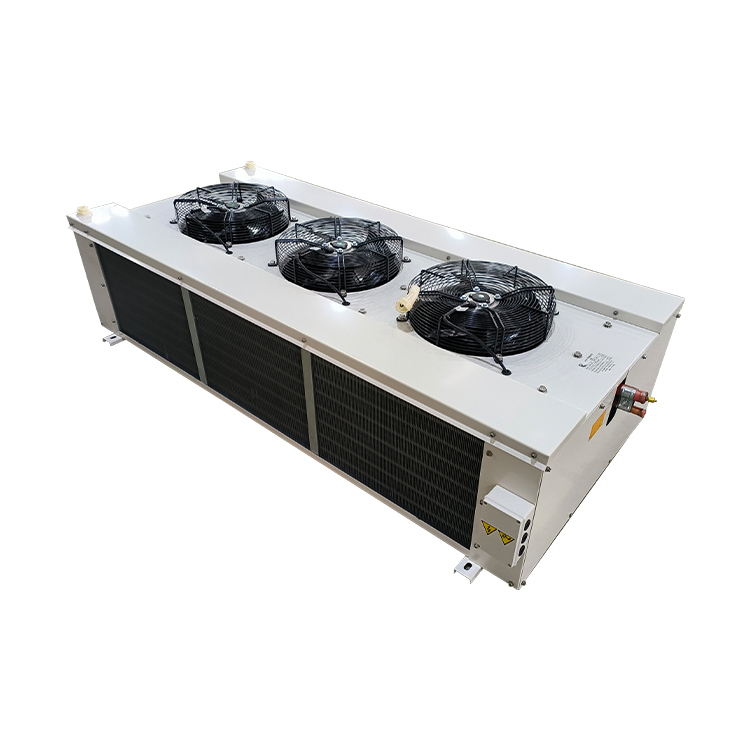

Double side Discharge Evaporator
Soft Air Distribution: Dual-side discharge prevents direct drafts on workers.
Quiet Operation: Low-noise axial fans ideal for processing rooms.
Uniform Frosting: Optimized coil design for consistent efficiency.
Rapid Defrost: Evenly spaced stainless steel heaters ensure quick melting.
- Overview
- Inquiry
- Related Products
Tech.Data For SEDL Type Double Side Discharge Evaporators | |||||||||||
| Model |
Ref. Capacity |
Cooling Area (m2) |
Spacing Of Fins (mm) |
Fan | Defrost Heater | ||||||
| Qty |
Diameter (mm) |
Volume (m3/h) |
Pressure (pa) |
Fan Motor (n*w) |
Power Supply |
Power (Kw) |
Power Supply | ||||
| SEDL-20 | 4.2 | 20.0 | 4.5 | 2 | 300 | 2*1850 | 82 | 2*90 |
220/380V 50hz 1Ph/3Ph |
2.7 | 220V 50hz 1Ph |
SEDL-30 |
6.2 | 30.0 | 2 | 300 | 2*1850 | 82 | 2*90 | 2.8 | |||
| SEDL-40 | 8.3 |
40.0 | 2 | 350 | 2*2750 | 98 | 2*135 | 3.5 | |||
| SEDL-55 | 11.5 | 55.0 | 3 | 350 | 3*2750 | 98 | 3*135 | 4.8 | |||
| SEDL-80 | 16.5 | 80.0 | 3 | 350 | 3*2750 | 98 | 3*135 | 8.1 | |||
| SEDL-105 | 22.2 | 105.0 | 3 | 400 | 3*3500 | 118 | 3*190 | 9.5 | |||
| SEDL-130 | 27.6 | 130.0 | 4 | 400 | 4*3500 | 118 | 4*190 | 11.5 | |||
| SEDL-165 | 33.6 | 165.0 | 4 | 400 | 4*4800 | 118 | 4*250 | 13.8 | |||
Tech.Data For SEDD Type Double Side Discharge Evaporators | |||||||||||
| Mode |
Ref. Capacity |
Cooling Area (m2) |
Spacing Of Fins (mm) |
Fan | Defrost Heater | ||||||
| Qty |
Diameter (mm) |
Volume (m3/h) |
Pressure (pa) |
Fan Motor (n*w) |
Power Supply |
Power (Kw) |
Power Supply | ||||
| SEDD-15 | 2.8 | 15.0 | 6 | 2 | 300 | 2*1850 | 82 | 2*90 |
220/380V 50hz 1Ph/3Ph |
2.7 | 220V 50hz 1Ph |
| SEDD-22 | 4.1 | 22.0 | 2 | 300 | 2*1850 | 82 | 2*90 | 2.8 | |||
| SEDD-30 | 5.6 | 30.0 | 2 | 350 | 2*2750 | 98 | 2*135 | 3.5 | |||
| SEDD-40 | 7.4 | 40.0 | 3 | 350 | 3*2750 | 98 | 3*135 | 4.8 | |||
| SEDD-60 | 11.2 | 60.0 | 3 | 350 | 3*2750 | 98 | 3*135 | 8.1 | |||
| SEDD-80 | 14.2 | 80.0 | 3 | 400 | 3*3500 | 118 | 3*190 | 9.5 | |||
| SEDD-100 | 18.6 | 100.0 | 4 | 400 | 4*3500 | 118 | 4*190 | 11.5 | |||
| SEDD-120 | 22.2 | 120.0 | 4 | 450 | 4*4800 | 147 | 4*250 | 13.8 | |||
Tech.Data For SEDJ Type Double Side Discharge Evaporators | |||||||||||
| Mod |
Ref. Capacity |
Cooling Area (m2) |
Spacing Of Fins (mm) |
Fan | Defrost Heater |
||||||
| Qty |
Diameter (mm) |
Volume (m3/h) |
Pressure (pa) |
Fan Motor (n*w) |
Power Supply |
Power (Kw) |
Power Supply | ||||
| SEDJ-10 | 1.5 | 10.0 | 9 |
2 | 300 | 2*1850 | 82 | 2*90 |
220/380V 50hz 1Ph/3Ph |
2.7 | 220V 50hz 1Ph |
| SEDJ-15 | 2.3 | 15.0 |
2 | 300 | 2*1850 | 82 | 2*90 | 2.8 | |||
| SEDJ-20 | 3.2 | 20.0 | 2 | 350 | 2*2750 | 98 | 2*135 | 3.5 | |||
| SEDJ-30 | 4.6 | 30.0 | 3 | 350 | 3*2750 | 98 | 3*135 | 4.8 | |||
| SEDJ-40 | 6.3 | 40.0 | 3 | 350 | 3*2750 | 98 | 3*135 | 8.1 | |||
| SEDJ-55 | 8.8 | 55.0 | 3 | 400 | 3*3500 | 118 | 3*190 | 9.5 | |||
| SEDJ-70 | 11.5 | 70.0 | 4 | 400 | 4*3500 | 118 | 4*190 | 11.5 | |||
| SEDJ-85 | 14.4 | 85.0 | 4 | 450 | 4*4800 | 147 | 4*250 | 13.8 | |||
| Note:The tech.data is based on R22, T(r)=25℃,∆T=10℃ | |||||||||||
