Open type condensing unit

Home >  Products  >  Condensing unit  >  Open type condensing unit

All

Bitzer Condensing Unit
Bitzer Condensing Unit
Bitzer Condensing Unit
Bitzer Condensing Unit
Bitzer Condensing Unit
Bitzer Condensing Unit
Bitzer Condensing Unit
Bitzer Condensing Unit

Bitzer Condensing Unit

With U channel steel as base, makes sure strong supporting for the wholeunit;

Fitted with original Bitzer compressor and all main configuartions brand in Danfoss;

Easier to install and test;

Customization available.

Inquiry
  • Overview
  • Inquiry
  • Related Products

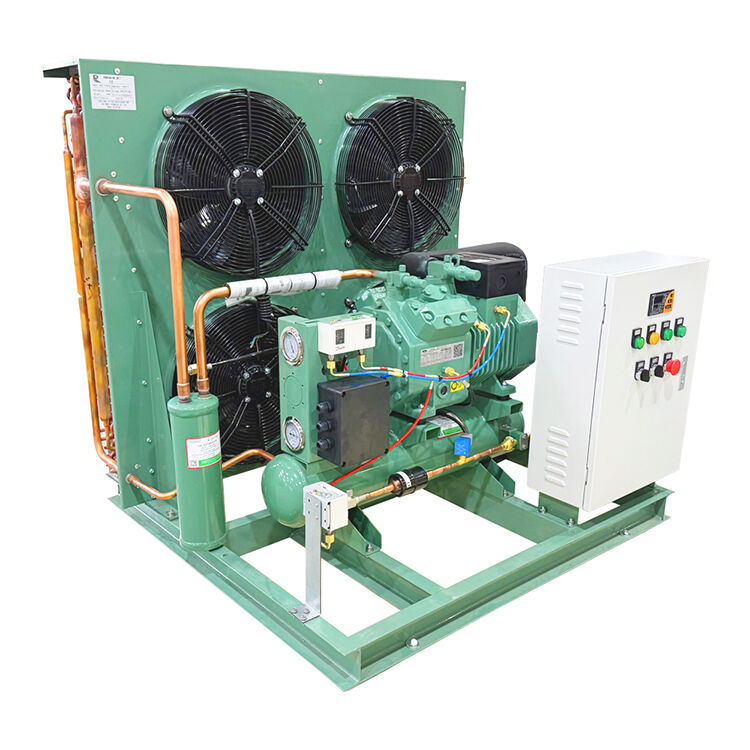

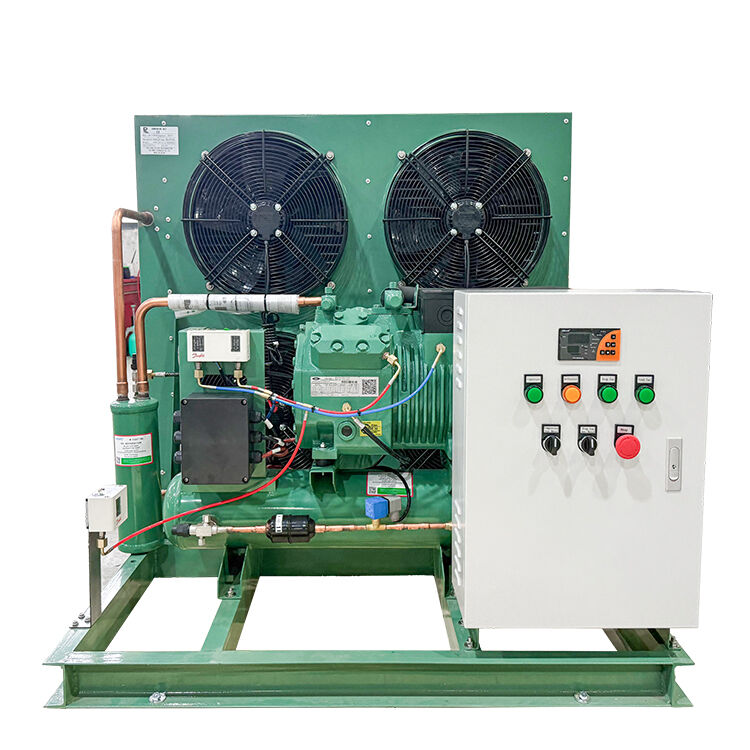

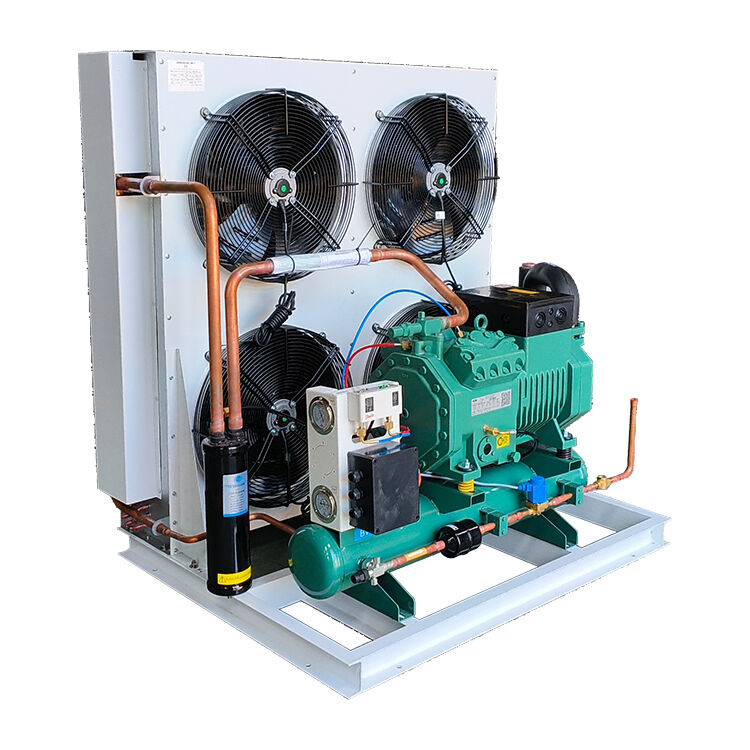

Open Type Bitzer Medium And High Temperature Air-Cooled Condensing Unit

Model of units RX-BZ-003H RX-BZ-004H RX-BZ-005H RX-BZ-006H RX-BZ-007H RX-BZ-010H RX-BZ-012H RX-BZ-015H RX-BZ-020H
Compressor model 2DES-3Y 2CES-4Y 4FES-5Y 4FES-6Y 4DES-7Y 4VES-10Y 4TES-12Y 4PES-15Y 4NES-20Y
Applicable Temperature (°C) -5 ℃ ~ -15℃
Refrigerant R404
Condenser Quantity of Fan(pcs) 2 2 2 2 4 4 4 4 4
Power of Fan (w) 2*190 2*190 2*190 4*135 4*190 4*190 4*190 4*250 4*420

Ref.Capacity

of

condensing

units

 Evaporating Temperature -5℃

Ref.Capacity(w)

 8300 10250 11110 13960 16890 21300 25800 29400 35200
Power(w) 3310 4070 4380 5540 6620 8010 9860 11170 13320
Evaporating Temperature -15℃

Ref.Capacity(w)

 5520 6870 7370 9210 11190 13730 6780 18830 22900
Power(w) 2780 3440 3760 4700 5690 6580 8130 9090 11000
Coupling Tube coupling (mm) 12 12 12 16 16 16 16 16 22
Suction coupling(mm) 22 28 28 28 35 35 35 42 54

Overall dimension

 Lenght (A) mm 940 1000 1000 1010 1170 1170 1170 1200 1340
Width (B) mm 820 820 820 820 900 900 900 900 900
Height (H) mm 540 590 590 690 1020 1120 1120 1340 1420
Installation dimension(D*E) mm 590*786 644*786 644*786 644*786 800*860 800*860 800/860 830*860 950*860


Open Type Bitzer Medium And low Temperature Air-Cooled Condensing Unit

Model of units RX-BZ-003L RX-BZ-004L RX-BZ-005L RX-BZ-007L RX-BZ-009L RX-BZ-012L RX-BZ-014L RX-BZ-018L RX-BZ-023L
Compressor model 4FES-3Y 4EES-4Y 4DES-5Y 4VES-7Y 4TES-9Y 4PES-12 Y4NES-14Y 4HE-18Y 4GE-23Y
Applicable Temperature (°C) -20°C ~ -35°C
Refrigerant R404
Condenser Quantity of Fan(pcs) 2 2 2 2 4 4 4 4 4
Power of Fan (w) 2*135 2*190 2*190 2*190 4*135 4*190 4*190 4*190 4*250

Ref.Capacity

of

condensing

units

 Evaporating Temperature -25℃

Ref.Capacity(w)

 4640 5890 7030 8240 10280 11320 13950 19880 23400
Power(w) 3060 3840 4550 5080 6350 6880 8580 12000 14270
Evaporating Temperature -30℃

Ref.Capacity(w)

 3590 4540 5420 6140 7760 8410 10520 15320 15320
Power(w) 2660 3320 3940 4260 5380 5740 7240 10350 10350
Coupling Tube coupling (mm) 12 12 12 16 16 16 16 16 22
Suction coupling(mm) 22 28 28 28 35 35 35 42 54

Overall dimension

 Lenght (A) mm 940 1000 1000 1010 1170 1170 1170 1200 1340
Width (B) mm 820 820 820 820 900 900 900 900 900
Height (H) mm 540 590 590 690 1020 1120 1120 1320 1420
Installation dimension(D*E) mm 590*786 644*786 644*786 644*786 800*860 800*860 800/860 830*860 950*860

📥Please download the complete product catalog here.Download

(Select the "Condensing Unit" catalog).
